SmartTank

ST90 AC Powered Host

SmartTank ST90 LTE Uplink

AC Powered
Monitoring Solution

SmartTank ST90 LTE Uplink

The ST90 AC Powered Host is an always-powered device. This new product is an adapted version of our battery-powered ST90 host. It can function as a host for other client devices to connect to specifically for bulk tank farms where there is access to AC power. This device can support more clients and if needed can be scheduled to report more frequently without worrying about impact to battery life. The AC Powered Host is suitable for many ordinary location environments.

Key Features

Designed for tank farm environments requiring special considerations.

Central connection point for client monitors on up to 32 indiviual tanks.

By using clients to leverage the host’s single point cellular connection, the customer can reduce the number of individual cellular connections required thereby reducing their total monthly service cost for the site.

Once installed and configured, site managers and drivers can easily request an update from the host and all connected clients by pressing the button on the junction box to get an up-to-the minute reading.

A compact rugged design, durable rating, reliable radio communication on either ATT or Verizon networks, GPS and temperature sensors, and accessory options for an easy to install solution.

Request Info
  • Ability to support up to 32 tanks
  • Up-to-the minute reading
  • Low cost cellular technology
  • Secure, reliable access to tank information when and where you need it
  • Reliable radio communication on either ATT or Verizon networks

Designed for Tank Farm Environments

Tank Farm environments require special considerations when deploying a monitoring solution. They have varying tank sizes, products and distances between them. Many have hazardous location restrictions as well. These variables can make monitoring in a cost-effective way a challenge.

The AC Powered Host serves as a central connection point for ST90 or ST95 client monitors on up to 32 individual tanks. However, sight line distances and obstructions may necessitate more than one host. By using clients to leverage the host’s single point cellular connection, the customer can reduce the number of individual cellular connections required thereby reducing their total monthly service cost for the site. This AC Host can be used at sites that have existing power available.

Up-to-the Minute Reporting

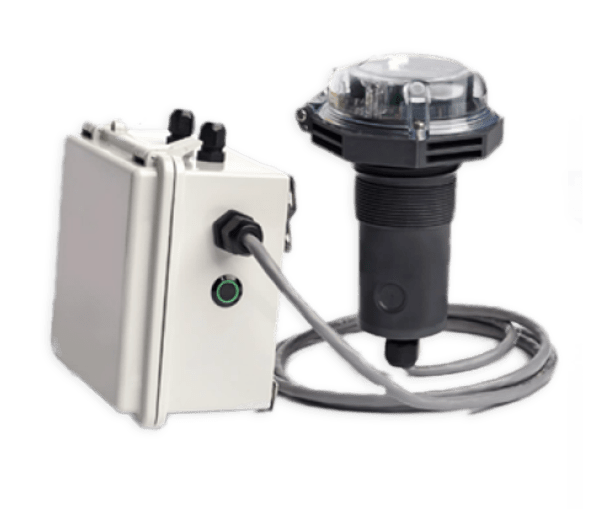

The AC Host consists of a head telemetry unit with the radio components, a junction box with an AC to DC power converter, two 4-20mA inputs and a device service request button. The unit comes prewired with a 50-foot cable connecting the telemetry unit to the junction box so that the head unit can be placed high for optimal line-of-sight communication path with area cell towers and the connecting client devices. Mounting options for both components are available. If the remote mount option is utilized, it may be advantageous to mount the host at the same level as the remotely mounted clients. The service request button remains accessible for easy update of all clients reporting through the host. The junction box is prewired with a standard AC power adapter but can also be wired directly to pre-run power lines at the site. Technicians can configure the host-client setup in exactly the same way as existing ST90 hosts. The junction box also provides easy access to the 4-20mA connection terminals for wiring directly to existing sensor systems.

Once installed and configured, site managers and drivers can easily request an update from the host and all connected clients by pressing the button on the junction box to get an up-to-the minute reading.

The ST90 AC Host has all of the same features as the Battery powered ST90 Host including a compact rugged design, durable rating, reliable radio communication on either ATT or Verizon networks, GPS and temperature sensors, and accessory options for an easy to install solution.

SMARTank ST90 AC Powered Host Specifications

Download PDF

Get in touch with us to learn how you can maximize profits and improve service with tank monitoring solutions.

Eliminate runouts and emergency deliveries with tank data

Track usage history over time to forecast refills and detect potential theft or leakage issues

Deliver more gallons with fewer stops. Better for your drivers, your product, and your customers

Become more profitable using smart technology that streamlines your entire operation

Always know who needs what, when and where
